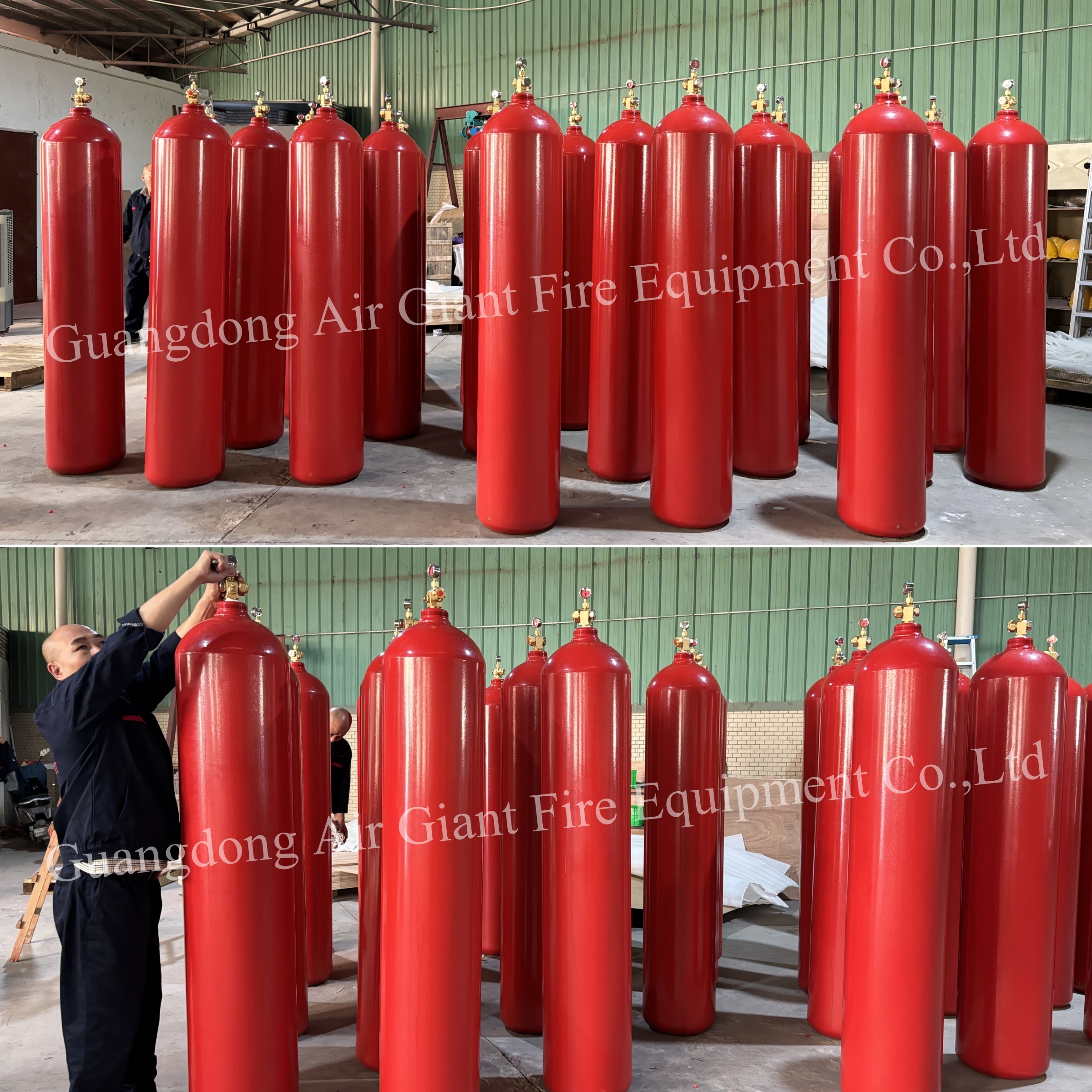

Inert Gas Argon IG55 Fire Extinguishing System Cylinder For Computer Room
Description
The extinguishing principle of inert gases focuses on reducing oxygen concentration in the affected zone.
When a fire starts, IG-55 rapidly penetrates the area and reduces the oxygen level percentage from the usual level of 21% to a limit that fluctuates between 13% and 11%, the amount sufficient for combustion to stop and to be safe for the people in the room. Thanks to the stratification of the gases (due to their density, argon rises and nitrogen falls) protection is achieved throughout the space, regardless of how high the ceiling is.
During its discharge, there is excellent visibility and, since it leaves no residue, there are no destructive effects to the equipment, which will continue functioning normally and, of course, there will be nothing to clean up.
Parameters
| No. |
Specification |
IG55(50% nitrogen;50% argon) |
| 1 |
Capacity |
80Ltr |
140ltr |
| 2 |
Working Pressure |
20MPa |
30MPa |
20MPa |
30MPa |
| 3 |
Device Model |
QMH20/80 |
QMH30/80 |
QMH20/140 |
QMH30/140 |
| 4 |
Filling Capacity of Gas |
22.32kg |
33.48kg |
42kg |
58.2kg |
| 5 |
Outside Diameter of Cylinder |
Φ267mm |
Φ267mm |
Φ406mm |
Φ356mm |
| 6 |
Height of Cylinder |
1870mm |
1870mm |
1460mm |
1925mm |
| 7 |
Filling Rate |
0.299kg/L |
0.415kg/L |
0.300kg/L |
0.201kg/L |
| 8 |
Spraying Time |
≤120s |
| 9 |
Power |
DC24V/1.6A |
| 10 |
Nitrogen Pressure of Driving Device |
6.0±1.0MPa(20℃) |
| 11 |
Condition of Reserving Room for Container |
temperature: 0~50℃ |
Features and benefits
-- Suitable for occupied areas
-- Electrically nonconductive
-- Chemically inert
-- Colourless, odourless and flavourless
-- No residue to clean up after the discharge
-- Zero Ozone Depletion Potential (ODP)
-- No greenhouse effect
-- No global warming impact
-- No decomposition products
-- No fog and no loss of post-discharge visibility
-- Non corrosive/toxic
-- Stored as a gas
-- Suitable for occupied areas
-- Excellent post-discharge visibility
-- Very low refill cost
-- Easy to obtain anywhere in the world
Application
-- Data centers, server rooms
-- Substations, electrical rooms
-- Telecommunication facilities
-- Museums, libraries, archives
-- Art storage rooms
-- Precision instrument workshops
-- Flammable liquid or gas storage areas
-- Aircraft hangars, ship engine rooms
-- Railway control centers
-- Control rooms, UPS power rooms
-- Hospital operating rooms, MRI suites
Package
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
